Spiral 7kW Type 2 To Type 2 Charging Cable 32A 250V 1 Phase IEC 62196 Standard

Brand Name : ANS

Model Number : ANSAG-T2-T2-32A

Certification : TUV,CE,RoHs, REACH

Place of Origin : China

MOQ : 1pcs

Price : USD

Payment Terms : L/C, D/A, T/T, D/P, Western Union

Supply Ability : 1000pcs one day

Delivery Time : 20-30days

Packaging Details : standards export package

product name : Type 2 To Type 2 EV Charging Cable

amps : 32A

charging mode : mode 3 ev charging cable

connector standard : type 2 to type 2

Voltage : 250V

materials : Huntsman

Plug Standard : IEC 62196

Grounding : Standard Grounding

Warranty : 24 months

phase : 1phase

Contact Now

IEC 62196 standard 32A 250V 1 phase 7kW ev charging leads type 2 to type 2 spiral ev cables

Product Features

Standard Connector, can be identified by EV (with Type 2 inlet) correctly and charge effectively.
Rugged design. Its structural strength is sufficient enough to support the rolling of an electric car.
Unique Arc Extinguishing technique makes sure that there won't have any electric sparks when plugging in and plugging out.
Safe & Reliable. The cable is made of flame-retardant TPU material, which can withstand the direct fire combustion within a safe time.
Durable. The advanced Crimping Technology ensures a working life of over 3000 times safe plugging in or out without any off-line error.

ProductModel:	ANSAG-T2-T2-32A
Product Type	Type 2 to Type 2 ev charging cable
Stardard:	IEC 62196-2
Rated Voltage:	AC 250V
Rated Current:	32A
Withstanding voltage:	2000V
Working temperature:	-30℃ to +65℃
StorageTemperature:	-40℃ to +70℃
Terminal temperature rise:	<50K
Contact impedance:	0.5mMax
Protection level:	IP67
Certifications:	TUV CE
Warranty:	2 years
Plug Colour:	Black, Red, Orange, Yellow, Green, Blue or Customization
Mechanical life:	No-load plug in/pull out>10000 times
Insertion and Extration Force:	45N<F<100N
Impato fex ternal force:	Can afford 1m drop and 2T vehicle run over pressure

Part name	Material	Supplier
Cable	PUR (TPU)	HUNTSMAN: A85P4380
Shell of plug	PC+PBT	SABIC:V3900WX
Head of plug	PA66+GF25	DUPONT: FR50

Spiral 7kW Type 2 To Type 2 Charging Cable 32A 250V 1 Phase IEC 62196 Standard

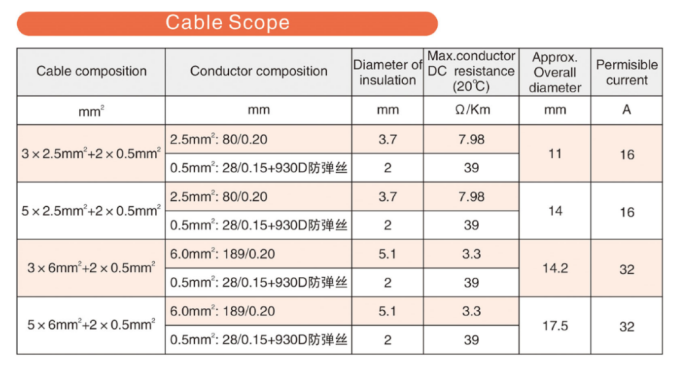

TPU Materials cables Components

Spiral 7kW Type 2 To Type 2 Charging Cable 32A 250V 1 Phase IEC 62196 Standard

Advantage

Conform to the provisions and requirements of IEC 62196-2 2016 2-lle
Using riveting pressure process with none screw ,have a beautiful appearance. Hand-held design conform to the ergonomic principle ,plug conveniently
XLPO for cable insulation prolonging the aging resistance life-span, TPU sheath improved the bending life and wear resistance of cable.
Excellent protection performance, protection grade achieved IP55 ( working condition )
Adopted double color coating technology, personalized custom a variety of colors ( Orange, blue, green,grey )

Applied Materials

Shell material: thermoplastics, flame retardant grade UL94-0
Pin: copper alloy, silver-plate and use thermoplastic at the top

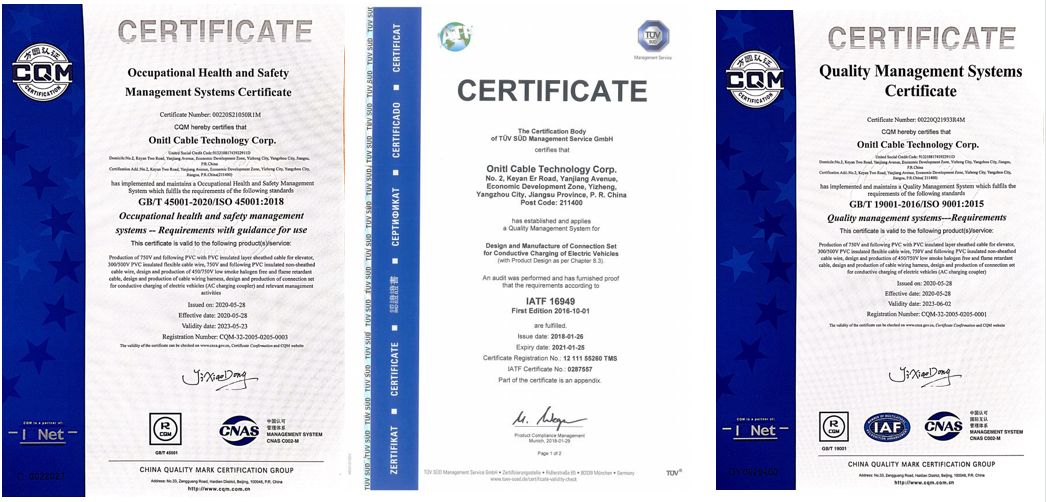

Certification:TUV,CE,RoHS, REACH, ISO 14001:2015,IATF16949 Spiral 7kW Type 2 To Type 2 Charging Cable 32A 250V 1 Phase IEC 62196 Standard
